AUTOMATIC FIRE SUPPRESSION

Automatic fire suppression solutions designed to detect heat or direct flame exposure and respond at the earliest stage of a fire.

AUTOMATIC ACTIVATION

ABC DRY POWDER

EARLY-STAGE RESPONSE

FLEXIBLE PROTECTION

AUTOMATIC FIRE EXTINGUISHER BALLS

Compact flame-activated suppression units for localized early-stage fire protection.

CEILING-MOUNTED ABC SYSTEMS

Heat-activated dry powder extinguishers for fixed overhead protection.

HEAT & FLAME ACTIVATION

Automatic response through direct flame contact or a dedicated thermal sensor.

DETECT EARLY. SUPPRESS AUTOMATICALLY.

Designed to deliver rapid localized suppression without waiting for manual extinguisher operation.

Automatic Activation
Flame contact ≤ 10 s
Thermal sensor 68 ± 3°C
Protection Coverage
Balls: up to 10 m³
Ceiling units: 12 m²
Extinguishing Agent
ABC Dry Powder

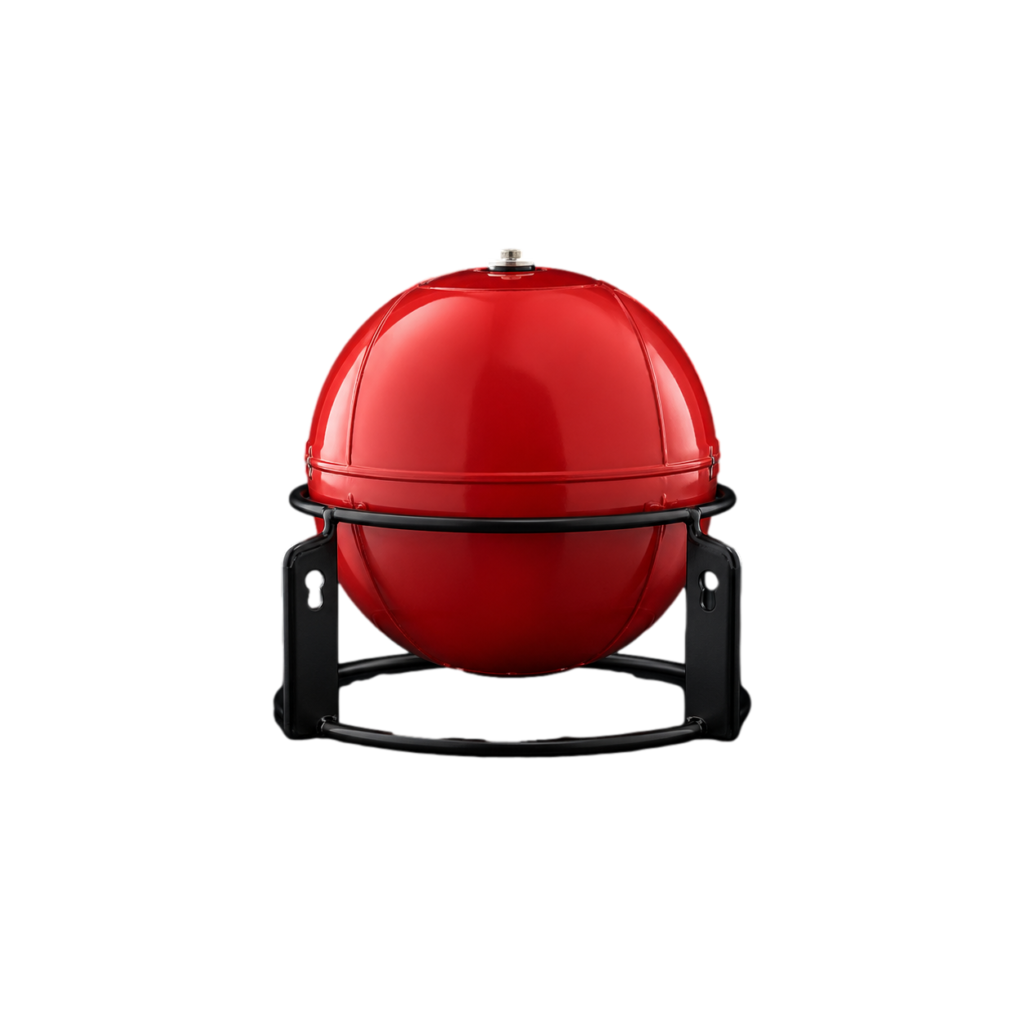

Automatic Fire Extinguisher Ball 400 g

Compact flame-activated fire extinguisher ball for localized protection of small, early-stage fire hazards.

Variant
400 g
Ball Diameter
105 ± 2 mm
Effective Volume
≤ 1 m³
Activation Time
≤ 10 s
Activation Method
Direct Flame Contact
Fire Applications
Class A / B / Electrical

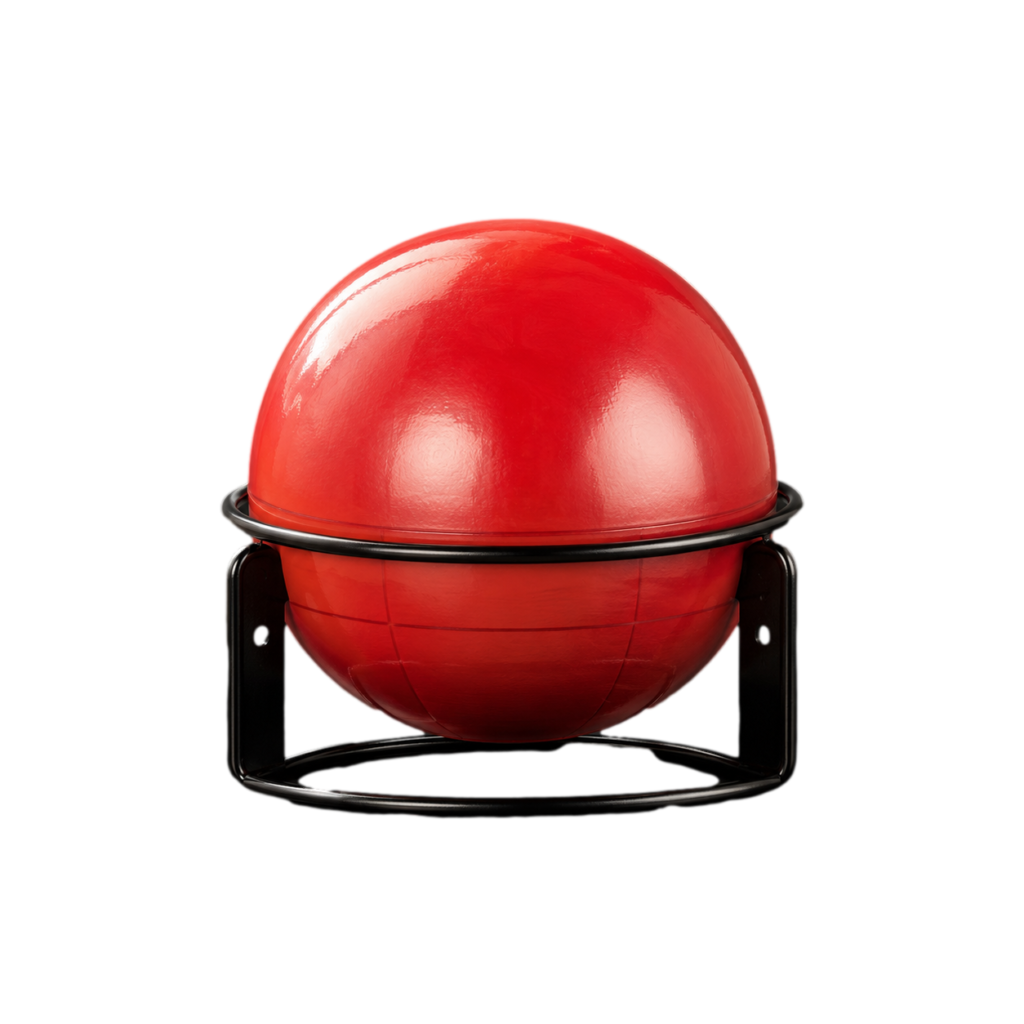

Automatic Fire Extinguisher Ball 600 g

Compact automatic suppression ball for localized fire risks where simple installation and rapid activation are required.

Diameter 110 ± 2 mm, effective volume ≤1 m³, activation ≤10 s.

Variant
600 g
Ball Diameter
110 ± 2 mm
Effective Volume
≤ 1 m³
Activation Time
≤ 10 s
Activation Method
Direct Flame Contact
Fire Applications
Class A / B / Electrical

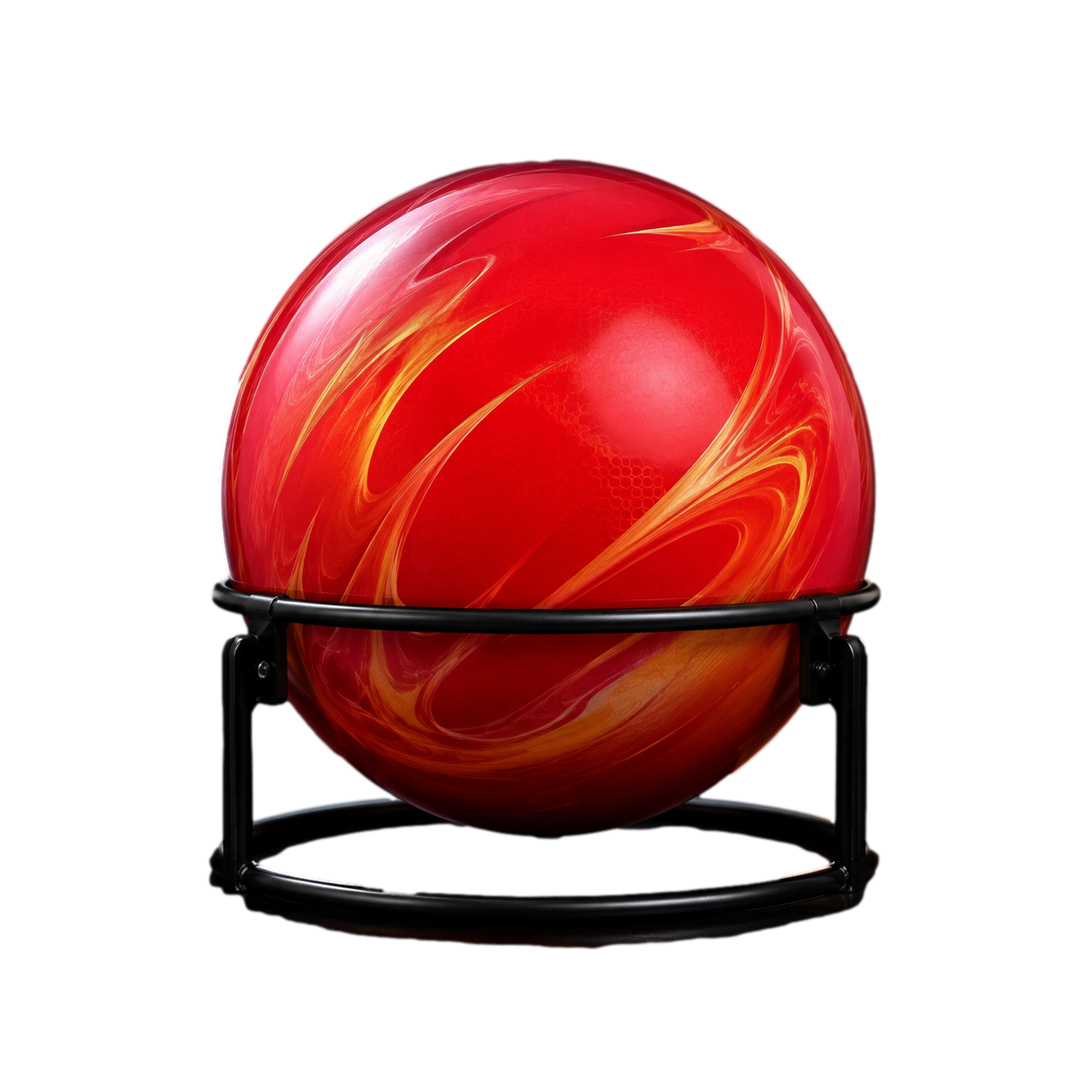

Automatic Fire Extinguisher Ball 1300 g

Mid-size flame-activated suppression ball providing increased localized coverage for equipment and storage areas.

Diameter 147 ± 2 mm, effective extinguishing volume ≤3 m³, activation ≤10 s.

Variant
1300 g
Ball Diameter
147 ± 2 mm
Effective Volume
≤ 3 m³
Activation Time
≤ 10 s
Activation Method
Direct Flame Contact
Fire Applications
Class A / B / Electrical

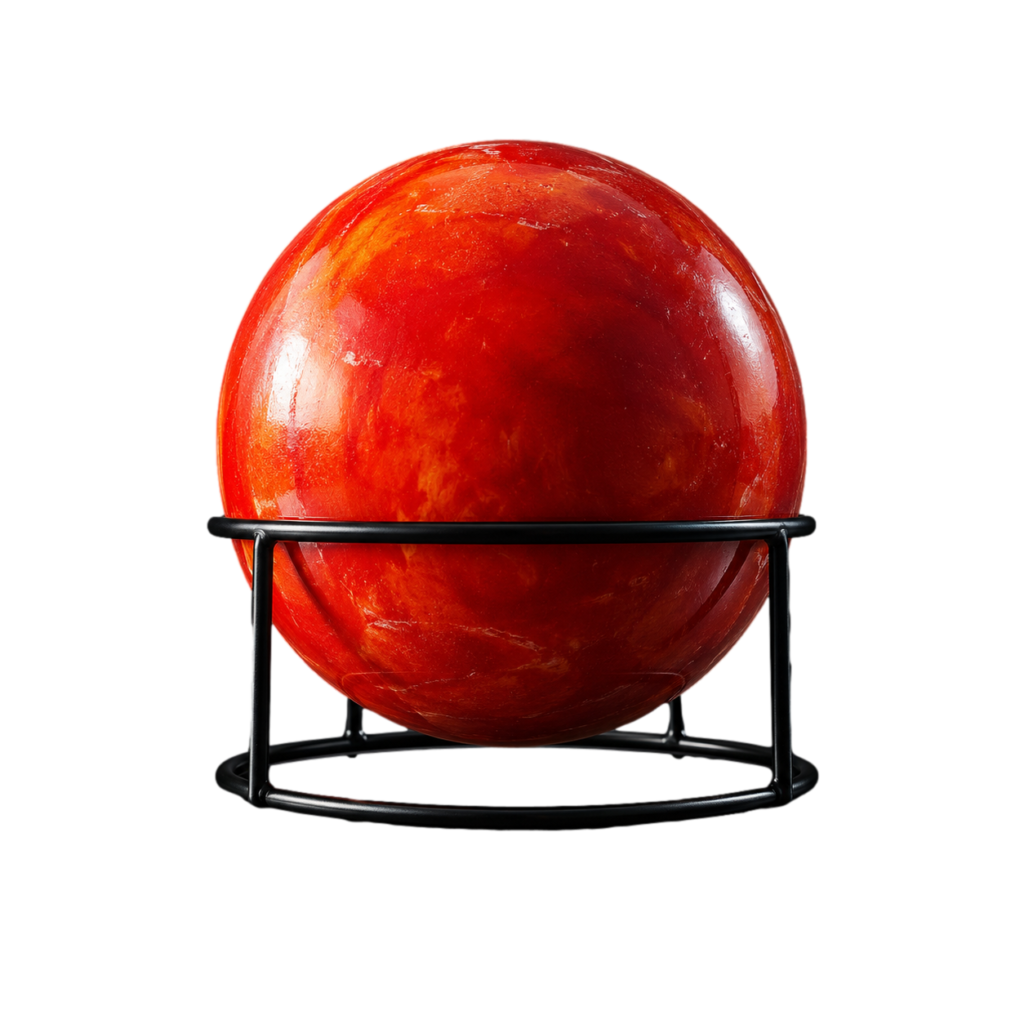

Automatic Fire Extinguisher Ball 2000 g

Higher-capacity automatic fire ball for localized fire suppression across larger equipment and storage zones.

Diameter: 195 ± 2 mm · Coverage: ≤6 m³ · Activation: ≤10 s.

Variant
2000 g
Ball Diameter
195 ± 2 mm
Effective Volume
≤ 6 m³
Activation Time
≤ 10 s
Activation Method
Direct Flame Contact
Extinguishing Agent
ABC Dry Powder

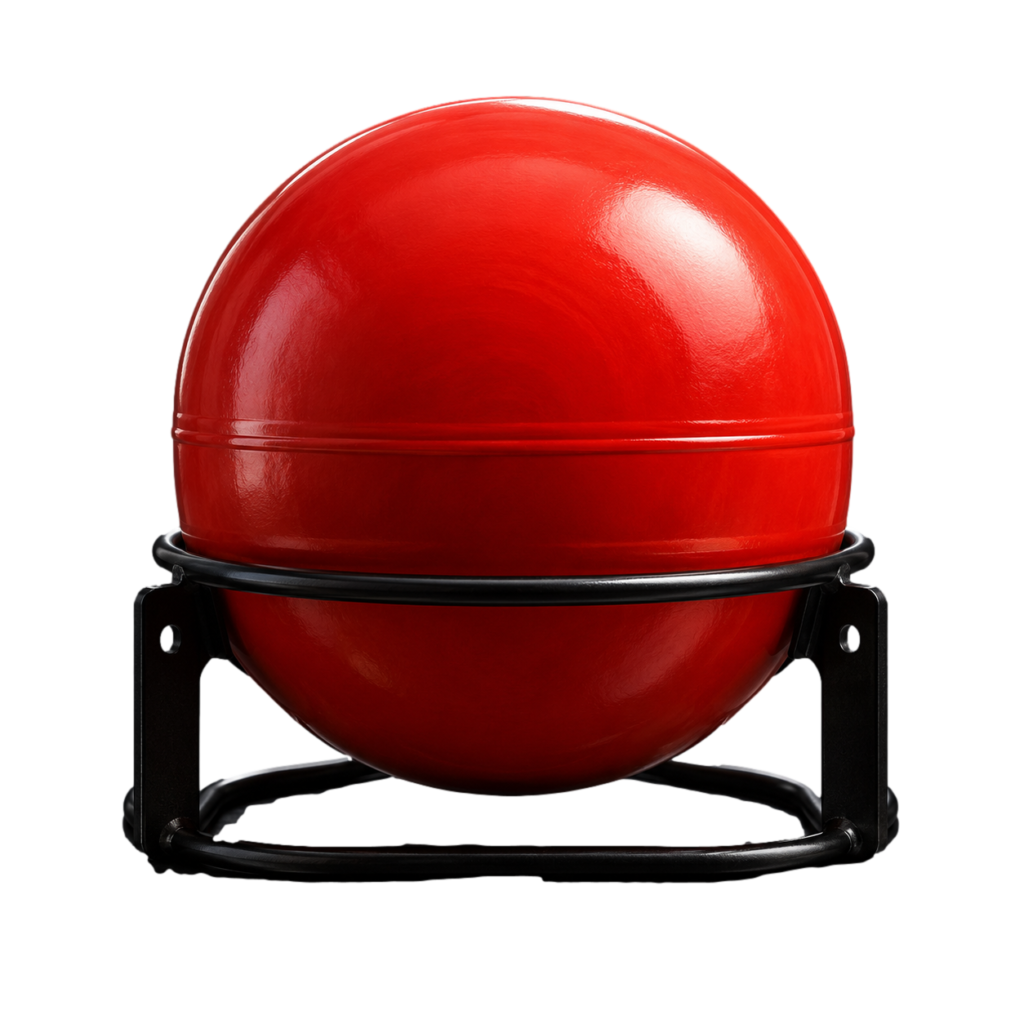

Automatic Fire Extinguisher Ball 4000 g

Large flame-activated suppression ball designed to extend automatic protection across higher-risk localized spaces.

Diameter: 209 ± 2 mm · Coverage: ≤8 m³ · Activation: ≤10 s

Variant
4000 g
Ball Diameter
209 ± 2 mm
Effective Volume
≤ 8 m³
Activation Time
≤ 10 s
Activation Method
Direct Flame Contact
Extinguishing Agent
ABC Dry Powder

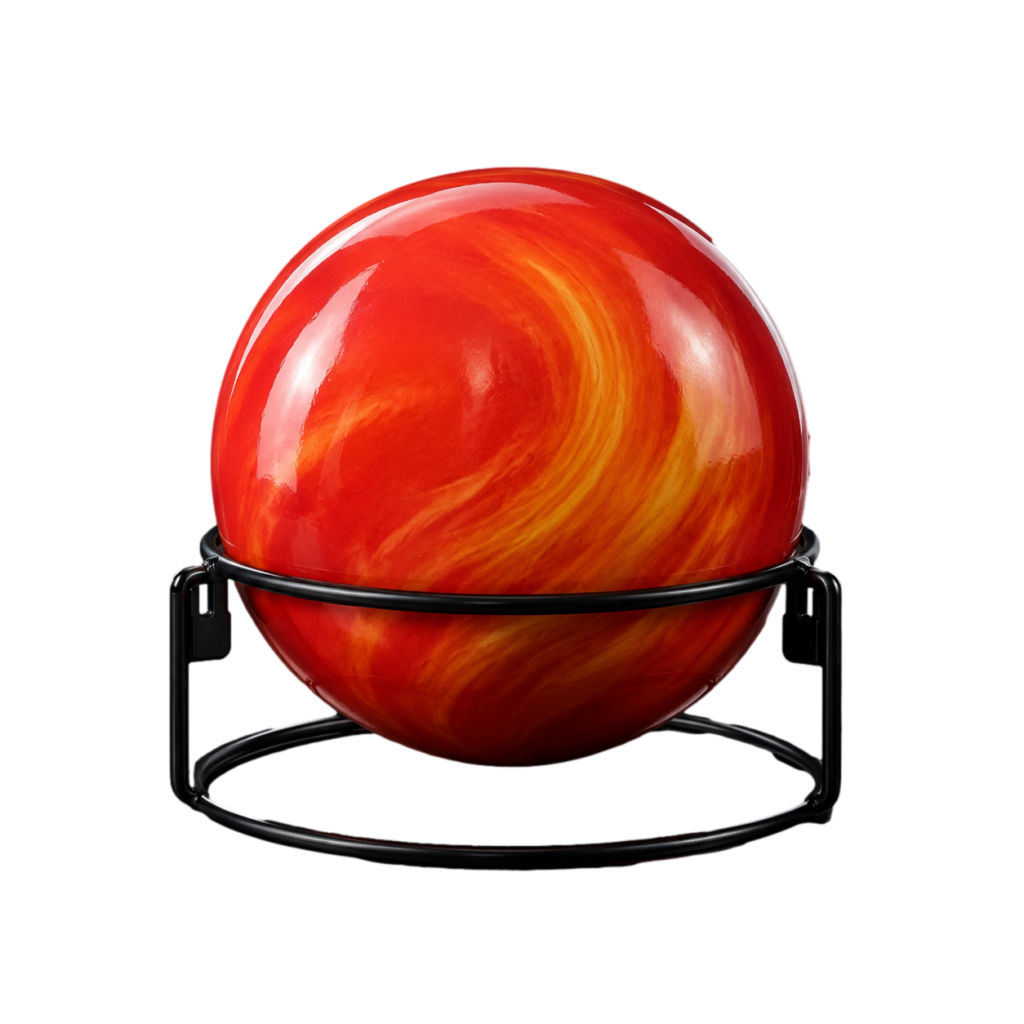

Automatic Fire Extinguisher Ball 6000 g

Largest automatic fire extinguisher ball in the range, providing localized suppression coverage up to 10 m³.

Diameter: 237 ± 2 mm · Coverage: ≤10 m³ · Activation: ≤10 s.

Variant
6000 g
Ball Diameter
237 ± 2 mm
Effective Volume
≤ 10 m³
Activation Time
≤ 10 s
Activation Method
Direct Flame Contact
Extinguishing Agent
ABC Dry Powder

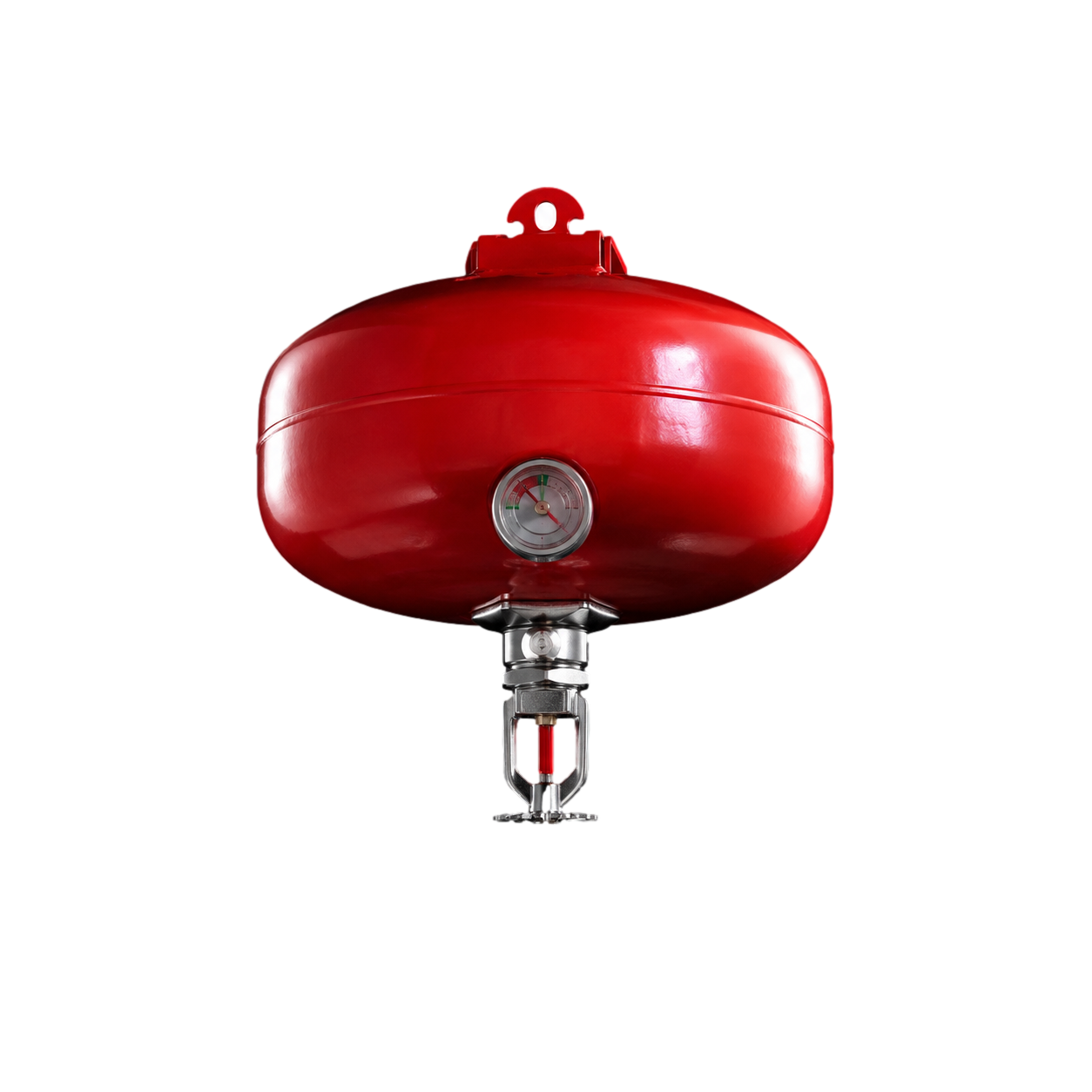

Automatic Ceiling-Mounted ABC Extinguisher 6 kg

Heat-activated ceiling-mounted ABC dry powder extinguisher with 68 ± 3°C thermal activation and 12 m² spray coverage.

The 6 kg unit has an overall size of 205 × 270 mm, 9 kg total weight, ≥9 s discharge time, 1.5 MPa equilibrium pressure and 2.5 MPa test pressure.

ABC Powder
6 kg
Overall Size
205 × 270 mm
Temperature
Operating -30 to 60°C
Sensor 68 ± 3°C
Spray Coverage
12 m²
Discharge Performance
Time ≥ 9 s · Rating 3A.89B.C
Pressure Performance
Working 1.5 MPa · Test 2.5 MPa

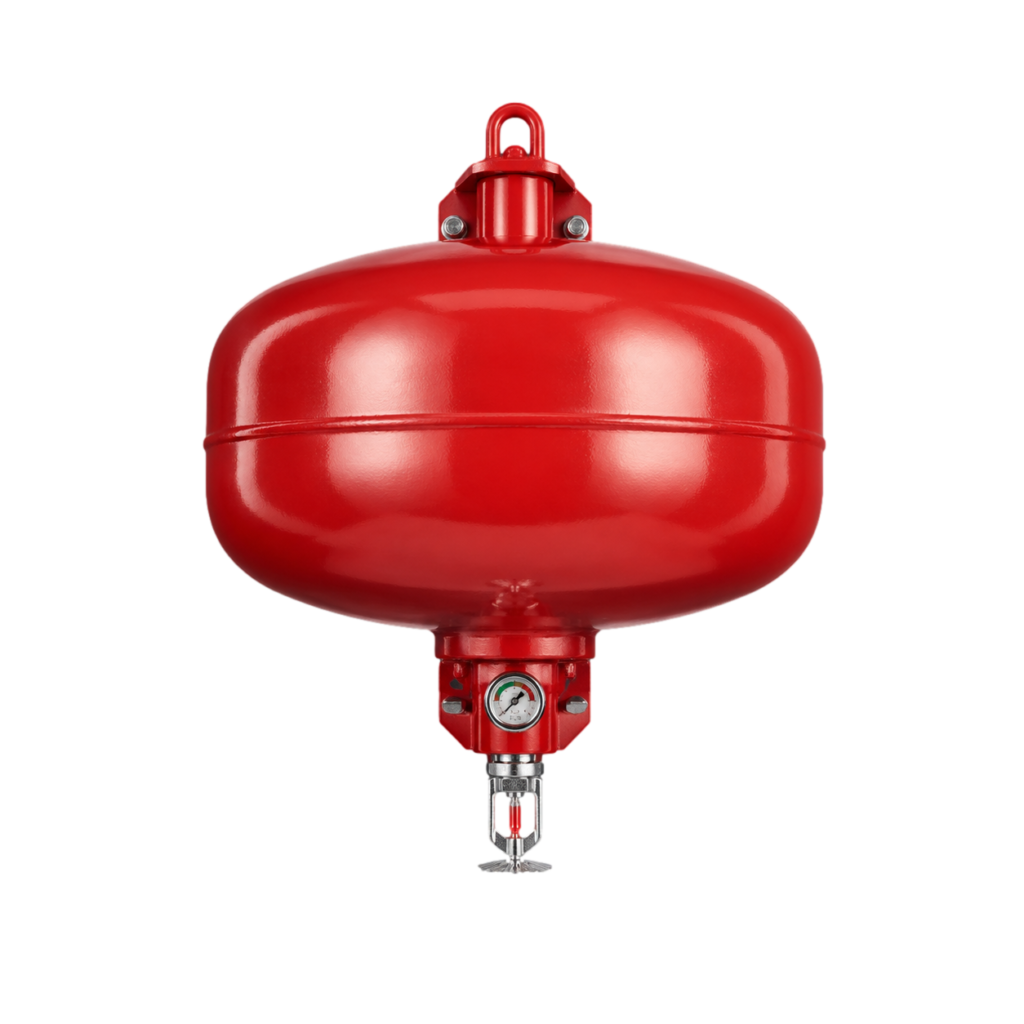

Automatic Ceiling-Mounted ABC Extinguisher 8 kg

Heat-activated 8 kg ceiling extinguisher combining 12 m² coverage with longer dry-powder discharge duration.

ABC Powder
8 kg
Overall Size
245 × 304 mm
Temperature
Operating: -30°C to 60°C
Thermal Sensor: 68 ± 3°C
Spray Coverage
12 m²
Discharge Performance
Time: ≥ 13 s
Fire Rating: 4A.89B.C
Pressure Performance
Working: 1.5 MPa
Test: 2.5 MPa

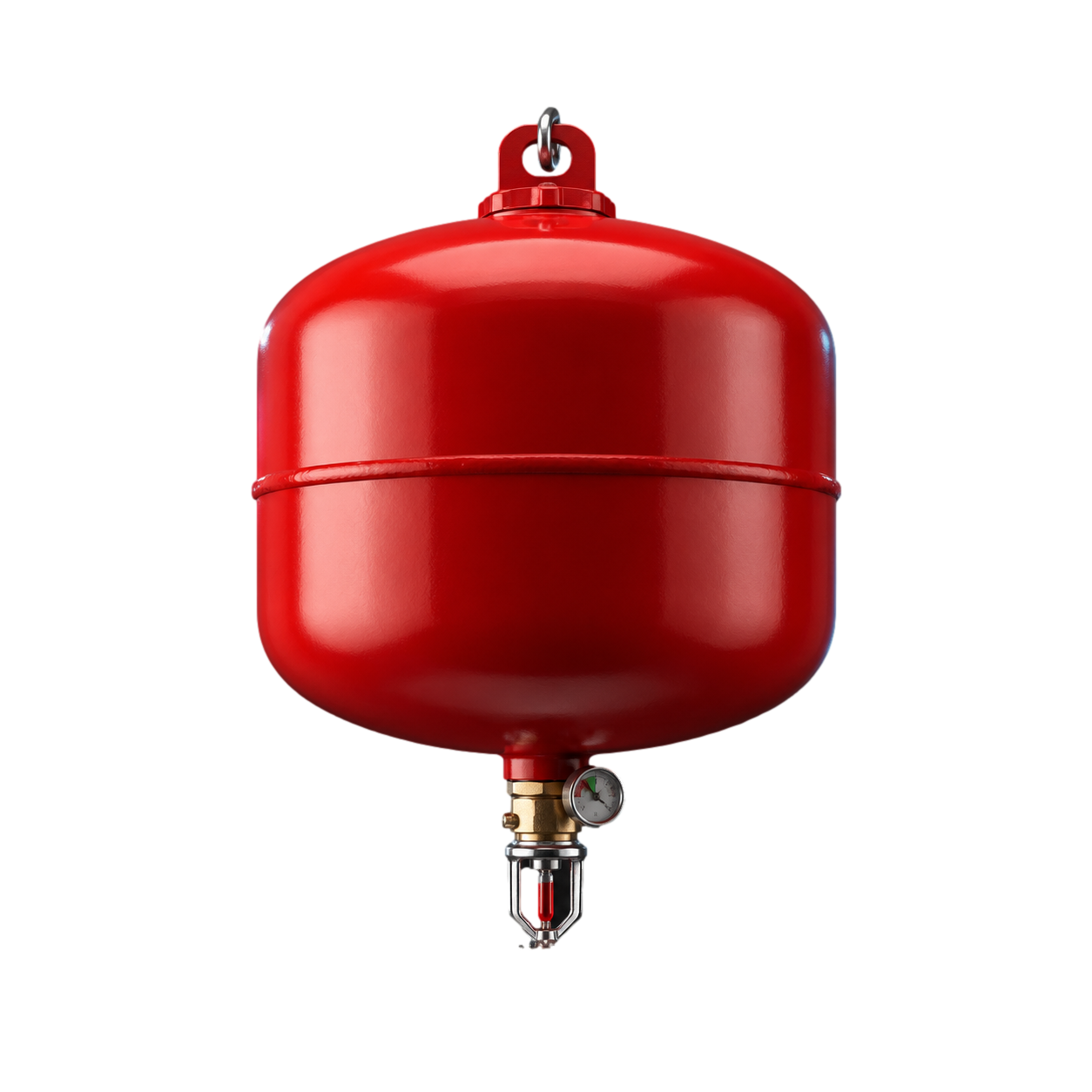

Automatic Ceiling-Mounted ABC Extinguisher 12 kg

High-capacity automatic ceiling-mounted ABC extinguisher for fixed protection of industrial and higher-risk areas.

ABC Powder
12 kg
Overall Size
275 × 304 mm
Temperature
Operating -30 to 60°C
Sensor 68 ± 3°C
Spray Coverage
12 m²
Discharge Performance
Time ≥ 26 s · Rating 6A.144B.C
Pressure Performance
Working 1.5 MPa · Test 2.5 MPa
